The NICE™ - detector
Summary:
- Cost-effective solution

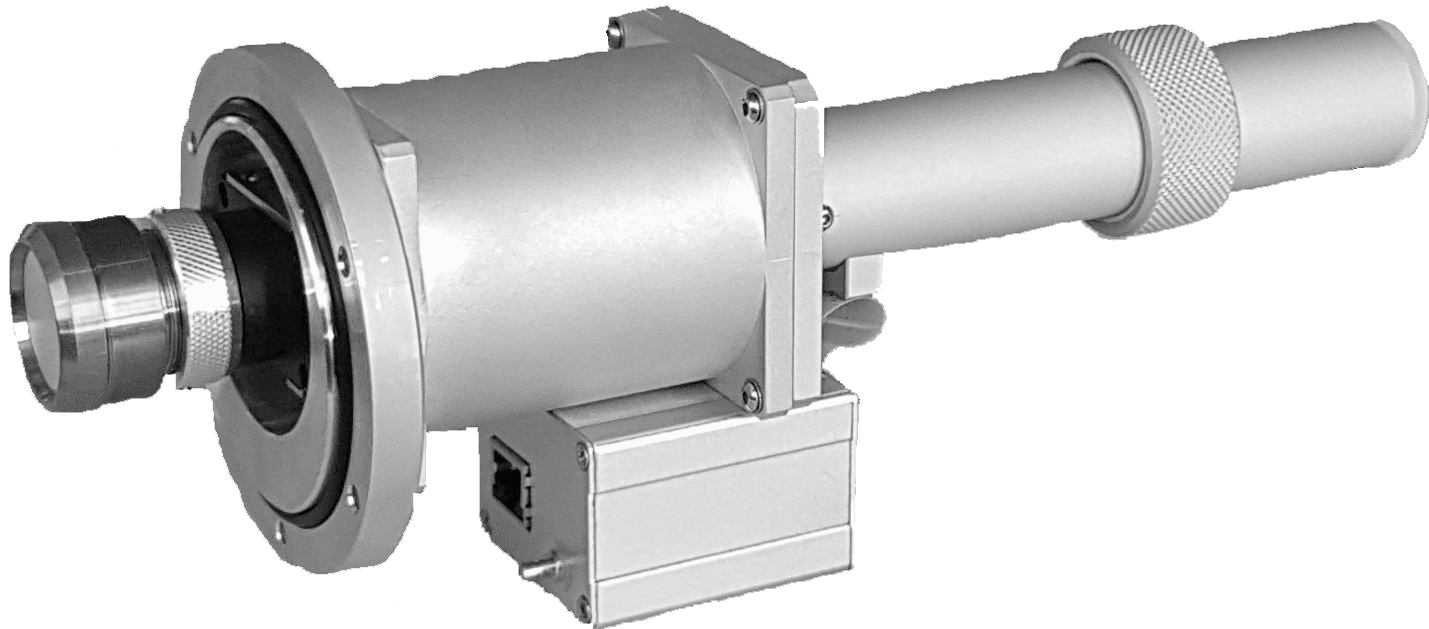

- Fully retractable version for SEMs with small and medium size chambers

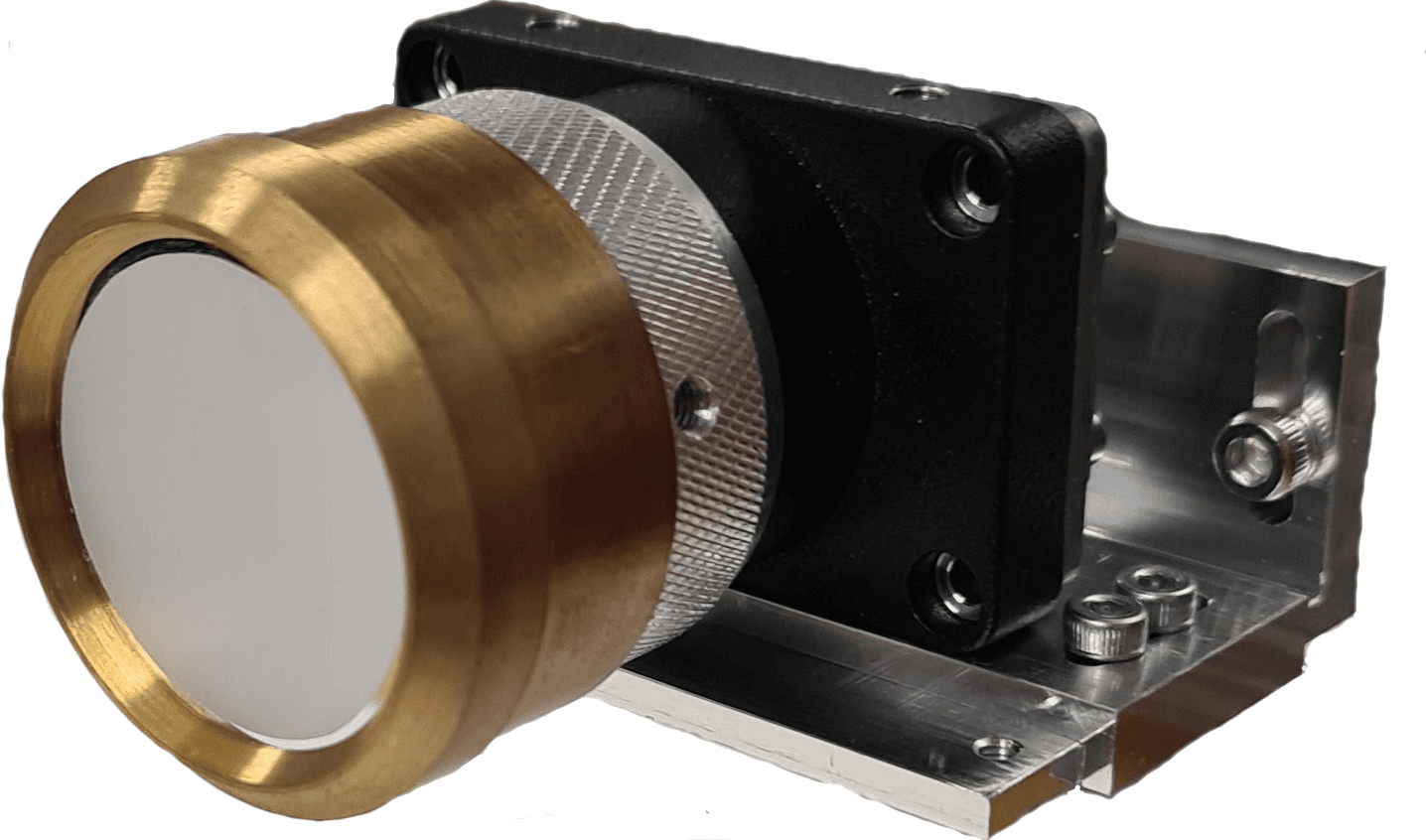

- Ultra-compact version for tabletop SEMs
- Compatible with NORDIF N3 acquisition software
- Includes orientation contrast color imaging by use of on-chip windows
Details:

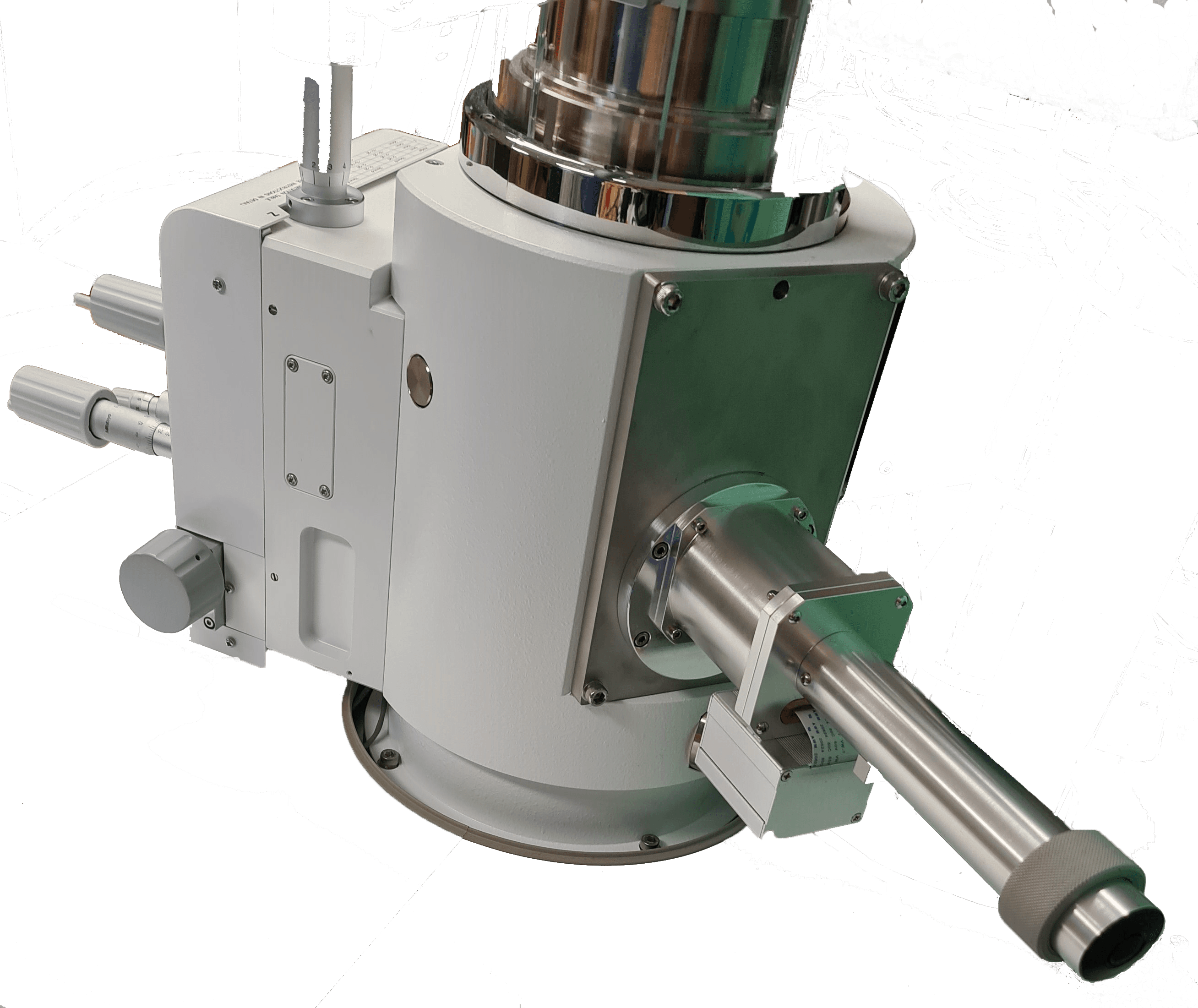

The world’s first EBSD detector designed for tabletop SEMs. A fully retractable version is also available for SEMs with small and medium size chambers. The NORDIF NICE detector has a high performance to price ratio. The GigE Vision™ camera has VGA resolution (480x480) with very flexible binning and speed options. The camera comes with low distortion optics and frame rates of 300Hz and 500Hz in pattern acquisition- and imaging modes respectively. The NICE detector is compatible with the NORDIF N3 acquisition software which includes orientation contrast color imaging by use of flexible on-chip windows. The N3 user friendly acquisitions software also include open access to all acquired data, easy access to camera settings, auto functions and a special trapezoidal distortion correction which is useful when the acquisition is performed at low magnifications.
